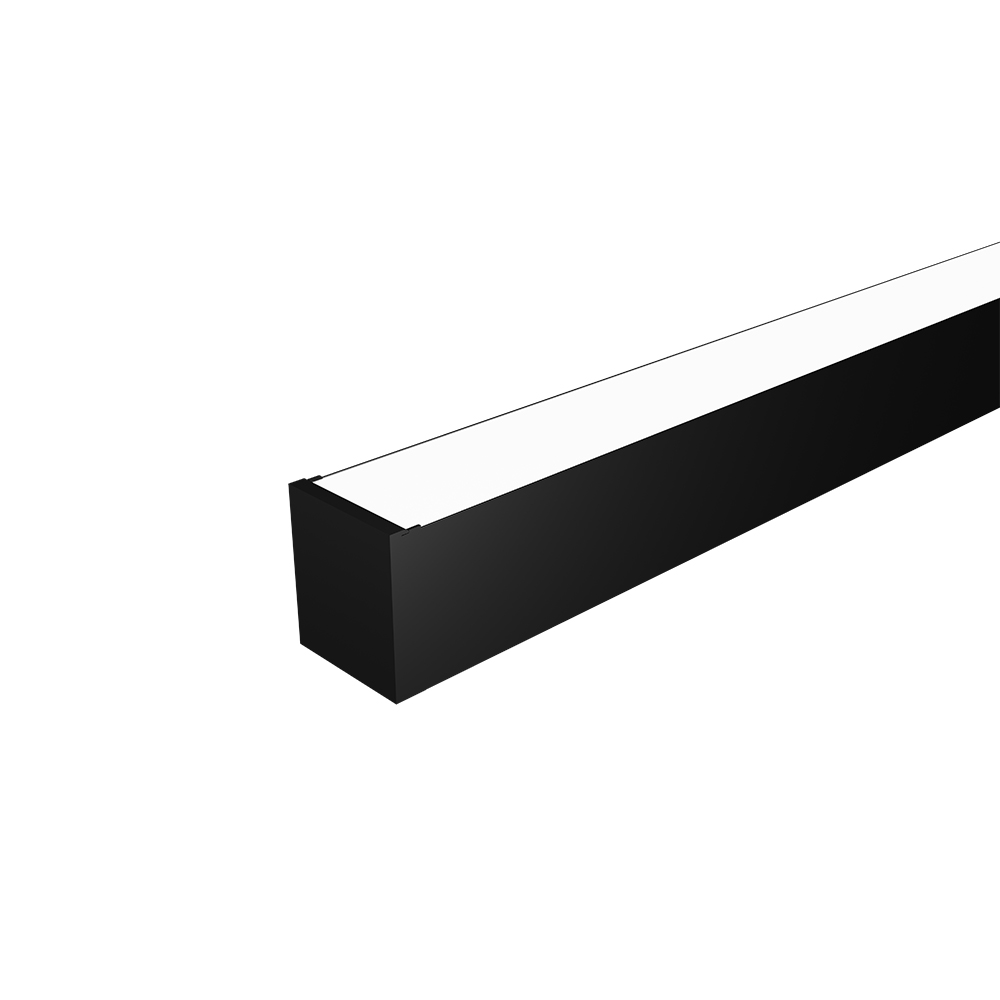

LED magistral linear NAVIGATOR black VIOLUX 60W 3000-4000-5000K IP20
Out of stock
| SKU: | 340179 |
|---|---|
| Series: | |
| Power: | 60 W |
| Luminous flux: | 6000 Lm |
| Correlated color temperature: | 3000-4000-5000 К |
| CRI (light quality): | Ra≥80 |
| Operating range of voltage: | 170-265 V |
| Frequency: | 50 Hz |
| Max. current strength: | 300 mA |
| Efficient energy use: | 100 Lm/W |
| Lifetime (L70B50): | 40 000 hrs |
| Number of switching on/off: | 30 000 |
| Full lumen output up to 60%: | ≤ 0,5 s |
| Beam angle: | 120° |
| Energy efficiency class (EU): | E |
| Energy efficiency class (UA): | А+ |
| Power factor (cos φ1): | 0,9 |
| Light retention coefficient: | ≥94.8% at the end of the rated service life |
| Start time: | 0,1 sec. |
| Degree of protection: | IP 20 |
| Electric equipment protection classes: | I |
| Diffuser material: | polycarbonate (PC) |
| Type of diffuser: | matte |
| Housing material: | aluminum |
| Light control: | not compatible with dimer |
| Model color: | black |
| Form: | rectangle |
| Max power of the lamps: | up to 1000W in one line |

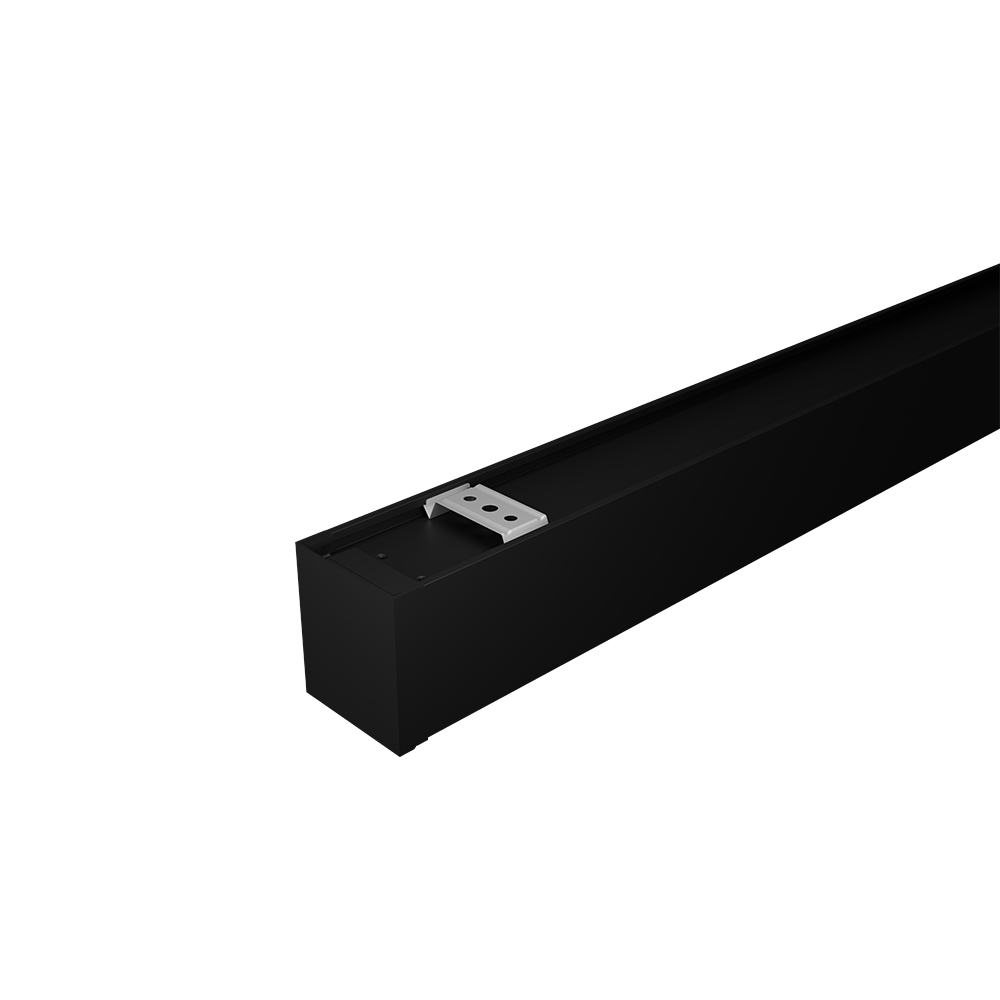

| Equipment: | Surface mounting kit |
| Special features: | comfortable light without pulsations, compatible with backlit switch, Power cable not included, Line connection capacity – up to 1000W, adjust the colour temperature by switching on the switch housing, Does not contain harmful substances |
| Operating temperature: | from -10 to +40 ℃ |
| Warranty period: | 3 years |

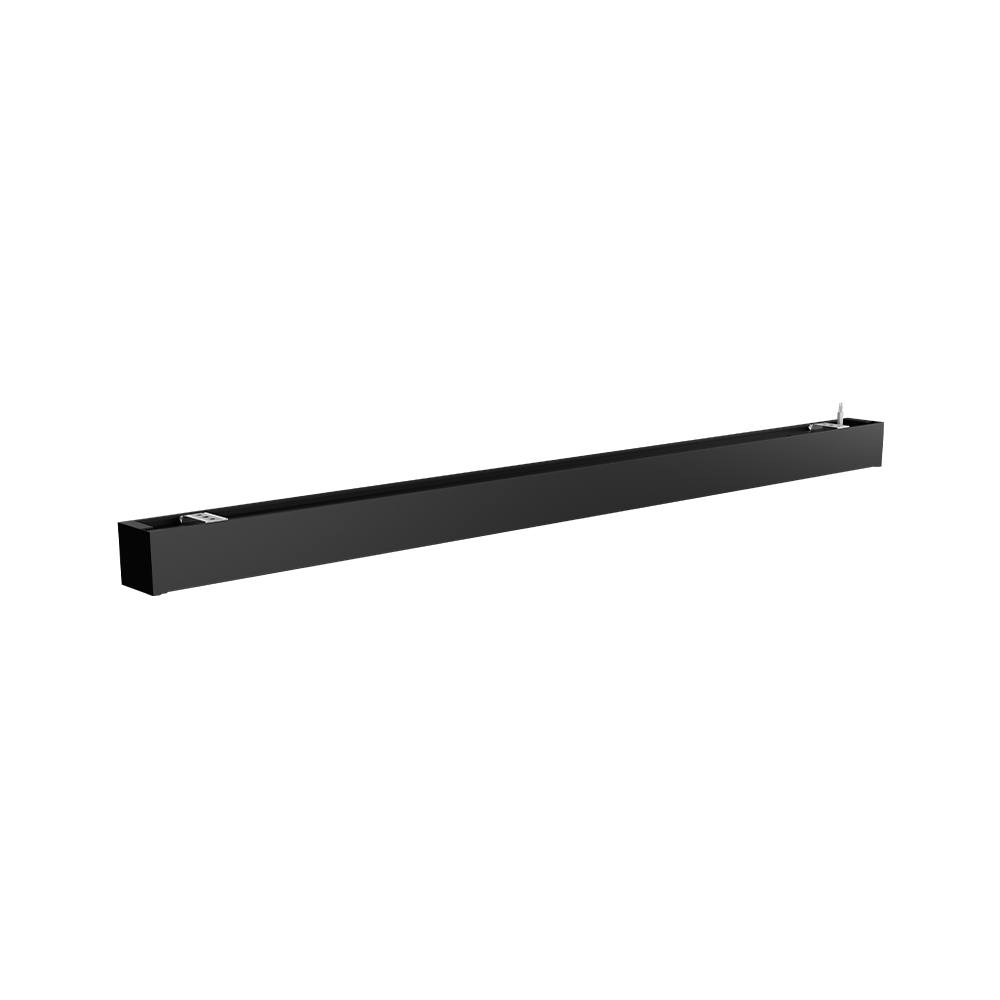

| Size, mm: | 1500x49x55 |
| Weight, g: | ____?____ |

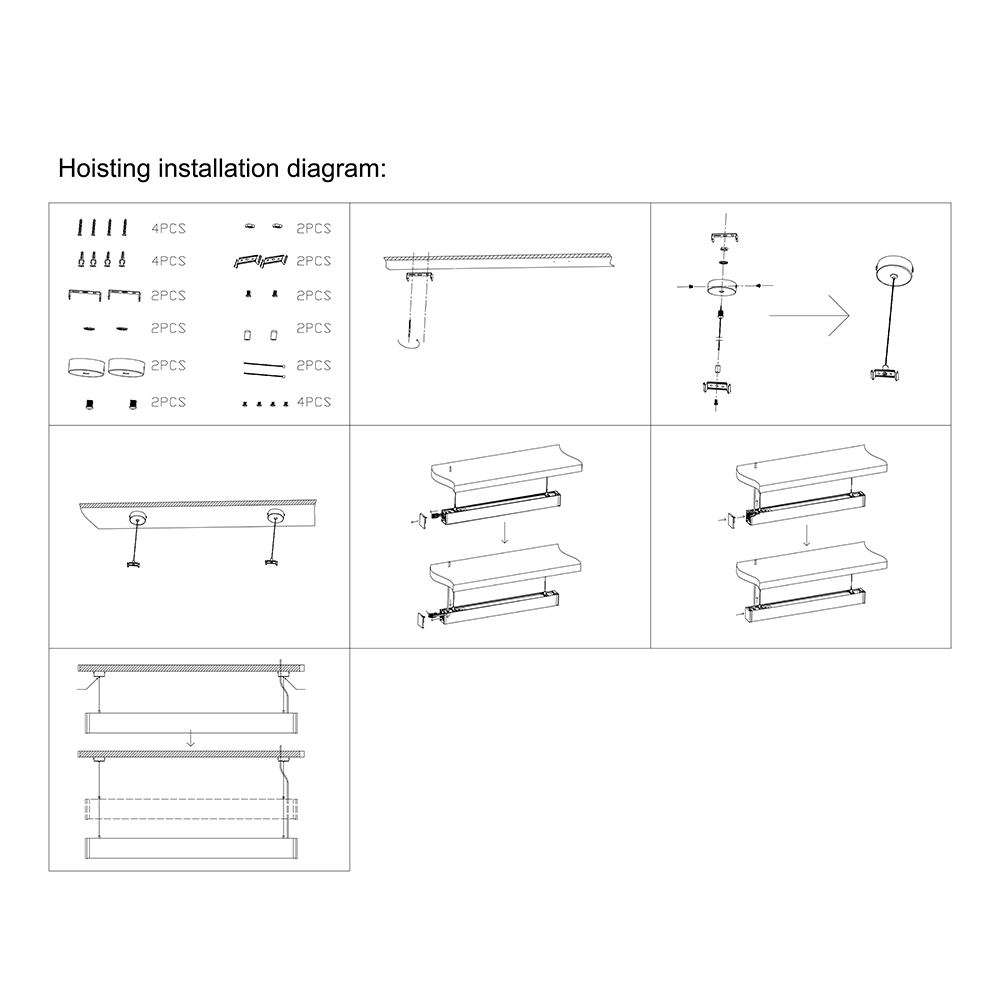

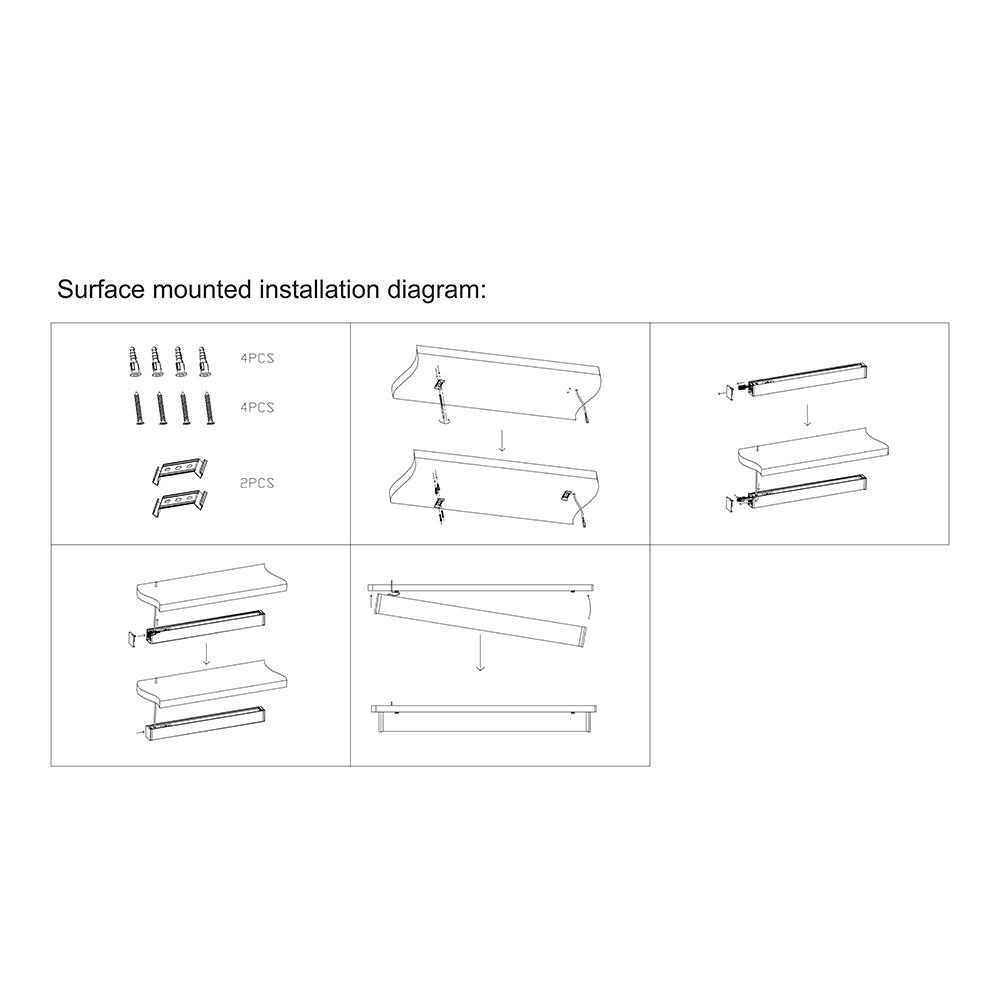

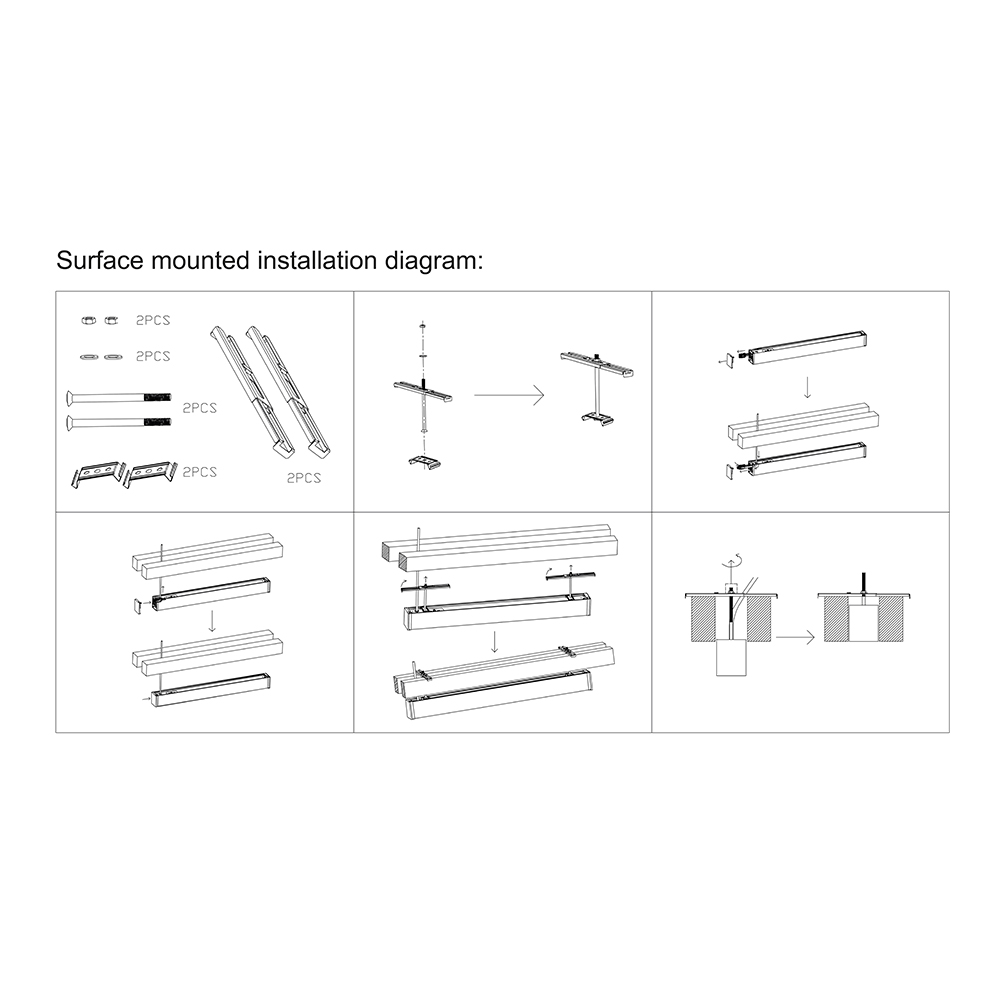

| Installation method: | surface, Pendant |

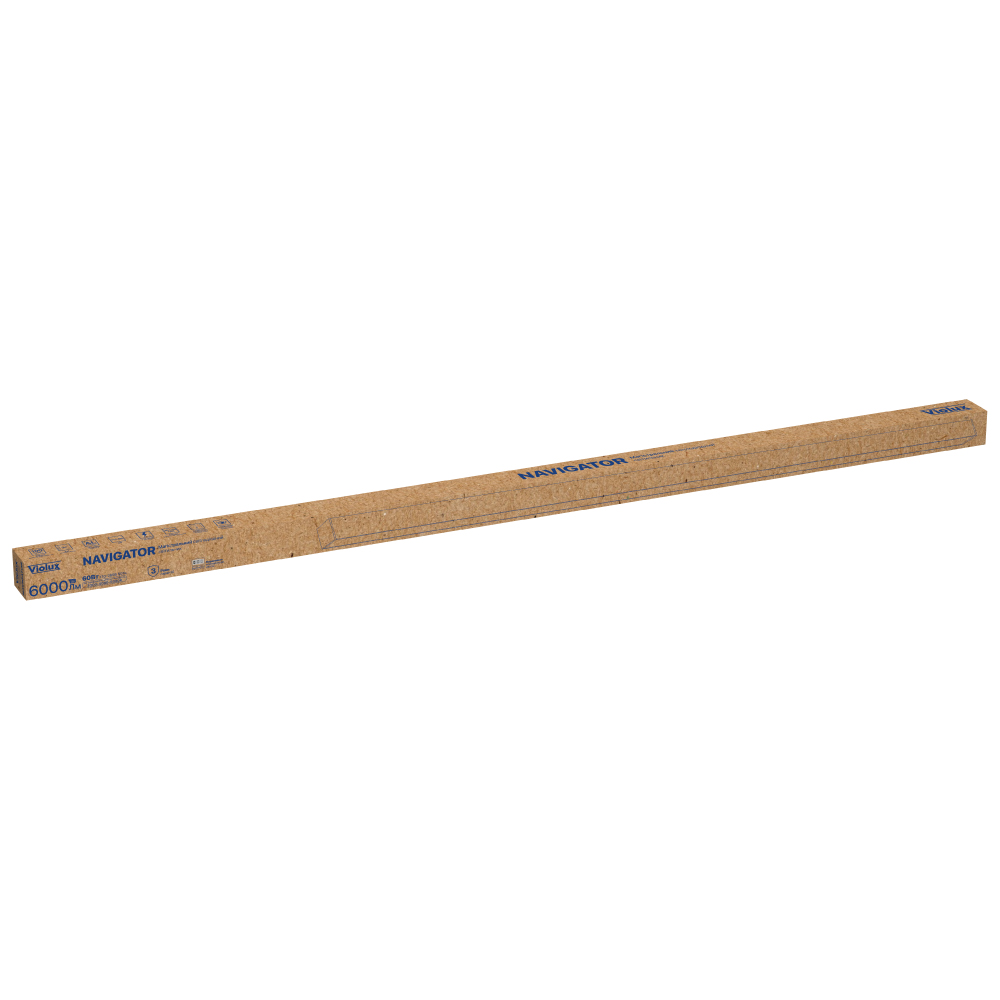

| Packing: | craft box |
| Packaging: pcs/box/carton box: | 1/8 |
| Type: | linear magistral lighting |
| Barcode: | 4821193401797 |
A high-bay LED luminaire designed for maximum efficiency and convenience. This luminaire can be connected in series up to 1000 W, allowing multiple units to be combined to provide powerful and uniform lighting even in large spaces. Thanks to its flexible mounting system, robust construction and high energy efficiency, the luminaire is ideal for lighting industrial premises, warehouses, shopping centres and other spaces where reliability and consistent lighting quality are essential.
The luminaire is equipped with a 3CCT function, allowing the colour temperature to be adjusted using a DIP switch located on the housing. The user can select one of three lighting modes — 3000K, 4000K or 5000K — enabling the light to be adapted to the specific characteristics of the room and the tasks at hand.
High luminous efficacy of 120 lm/W ensures bright and economical lighting with minimal energy consumption, significantly reducing electricity costs when operating large lighting systems.
The luminaire’s design simplifies installation and subsequent maintenance, whilst durable LEDs and high-quality materials guarantee stable operation for many years. Energy-efficient, reliable and versatile, this linear luminaire ensures comfort and productivity in any space.

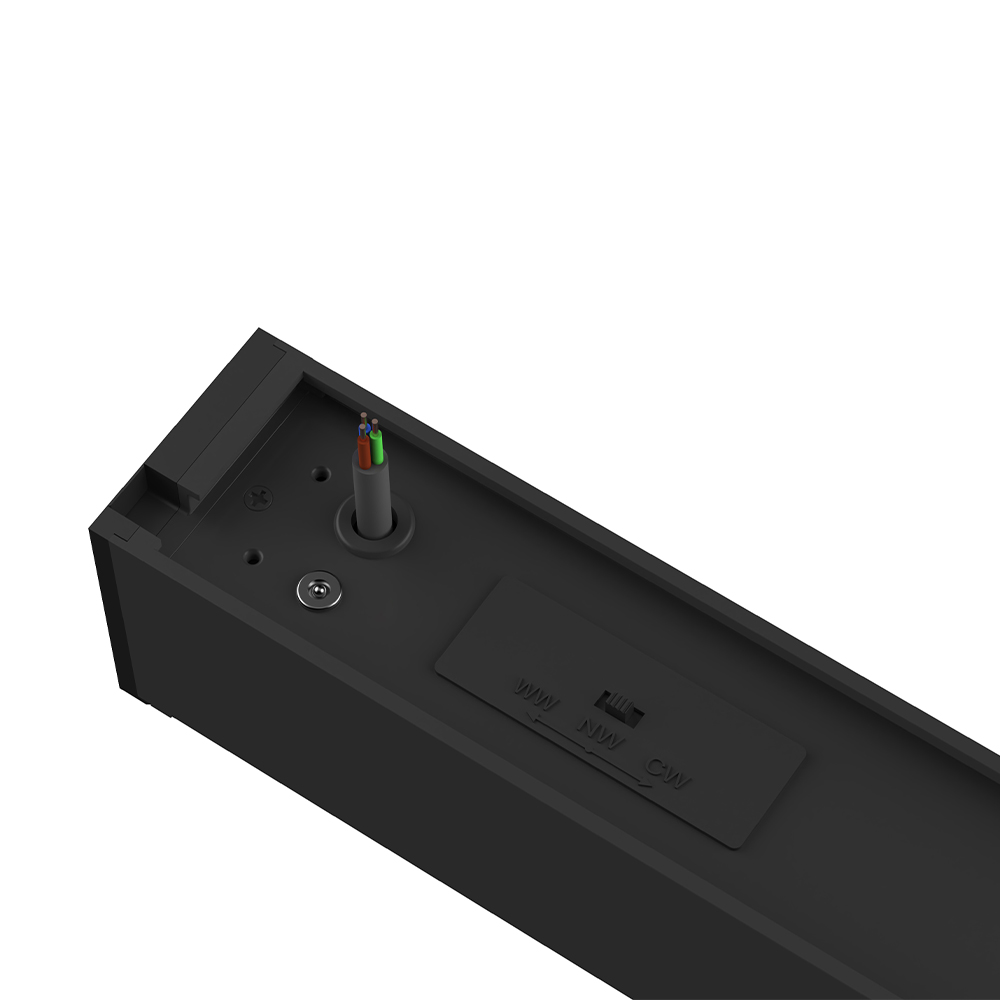

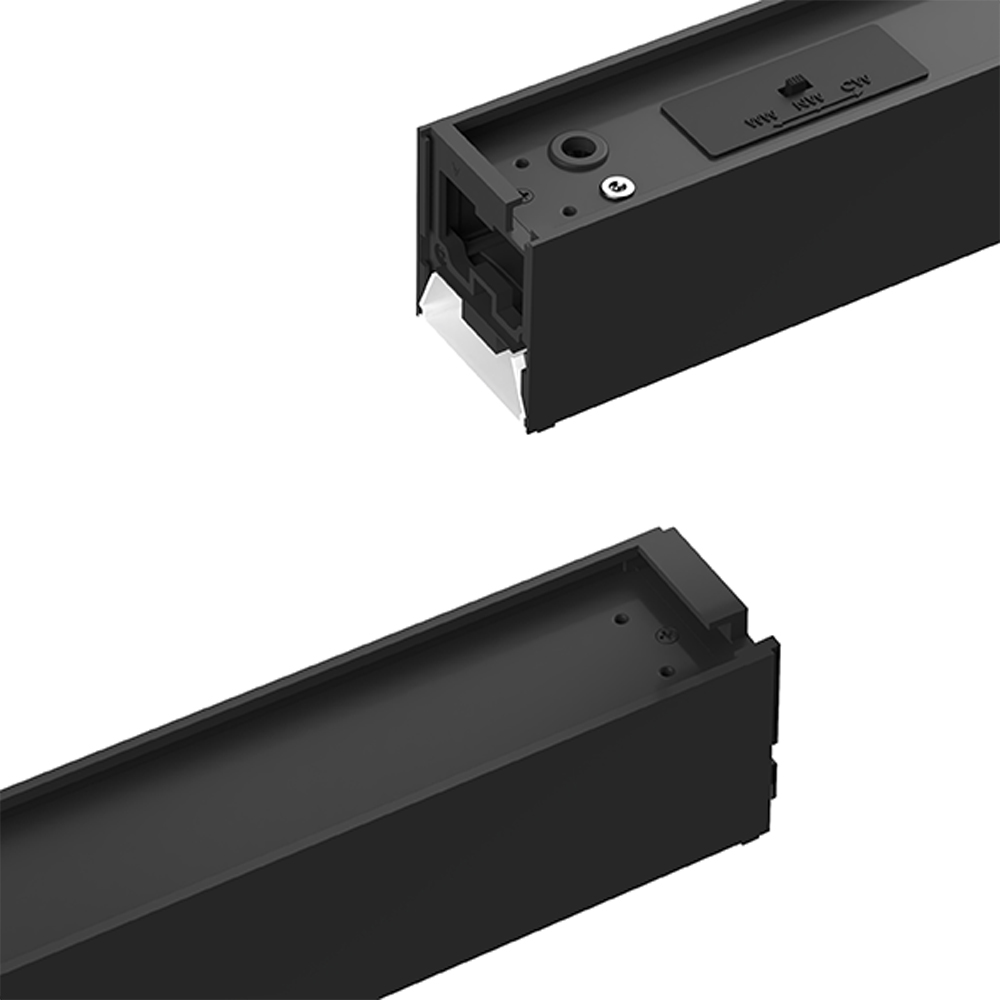

Colour temperature adjustment via DIP switch
Colour temperature adjustment is carried out using a DIP switch located directly on the luminaire housing.
The switch has three fixed positions, each corresponding to a specific colour temperature:
- WW (Warm White) — 3000 K
- NW (Neutral White) — 4000 K
- CW (Cool White) — 5000 K
When changing the colour temperature, the luminous efficacy remains constant — 100 lm/W in all modes.
This means that regardless of the selected light colour, the luminaire provides the same brightness and efficiency without any loss of luminous flux.
Be sure to disconnect the luminaire from the power supply before switching. After changing the position of the DIP switch, the device automatically operates in the selected colour temperature mode.
