Autonomous wall lamp Violux AJAX-E IP54 5W 500Lm 5000K IP54
In stock
| SKU: | 240111 |
|---|---|
| Series: | |
| Power: | 5 W |
| Battery capacity: | 1800 mAh |
| Luminous flux: | 500 Lm |
| Correlated color temperature: | 5000 K |
| CRI (light quality): | Ra>80 when fully charged |
| Max. power (Pm): | 1,5 W |
| Max. voltage (Vmp): | 5,5 V |
| Max. current (Imp): | 0,3 А |
| No-load voltage (Voc): | 6,6 V |
| Short-circuit current (Isc): | 0,4 А |
| Charging time from the sun (h): | 4-6 hrs. (1000W / m2) |
| Efficient energy use: | 100 Lm/W |
| Lifetime (L70B50): | 30 000 hrs |
| Number of switching on/off: | 30 000 |
| Full lumen output up to 60%: | ≤ 0,5 s |
| Output voltage: | 3,2 В |
| Beam angle: | 120° |
| Energy efficiency class (EU): | E |
| Energy efficiency class (UA): | А+ |
| Power factor (cos φ1): | 0,5 |
| Light retention coefficient: | ≥94.8% at the end of the rated service life |
| Start time: | 0,1 sec. |
| Degree of protection: | IP 54 |
| Degree of impact resistance: | ІК 07 |
| Electric equipment protection classes: | III |
| Lighting level: | ≤ 25lux (люкс) |
| Detection range: | ≤ 8 м (25°С) |
| Detection angle: | 120˚ |
| Operating time with max. charge: | 3 hrs |
| Charge time: | 15-24 hrs |
| Diffuser material: | polycarbonate (PC) |
| Type of diffuser: | matte |
| Housing material: | ABS plastic |
| Model color: | black |
| Form: | trapezoid |
| Equipment: | Short circuit protection, Protection against complete discharge and battery charge |
| Special features: | comfortable light without pulsations, auto-saving the last lamp settings, Electricity saving of 100%, infrared motion sensor, push-button control, Does not contain harmful substances |
| Type of battery: | Lithium iron phosphate (LiFePO4) |
| Battery charge status: | LED indicator |
| Operating temperature: | from -20 to +45 ℃ |
| Warranty period: | 2 years |
| Number of battery cycles: | 2,000 cycles |
| Size, mm: | 250х120х66 |
| Weight, g: | 350 |
| Installation method: | surface |
| Packing: | colour box |
| Packaging: pcs/box/carton box: | 1/20 |
| Type: | Autonomous wall lamp |
| Barcode: | 4821192401118 |
The Violux autonomous wall lamp is designed for outdoor and indoor lighting.

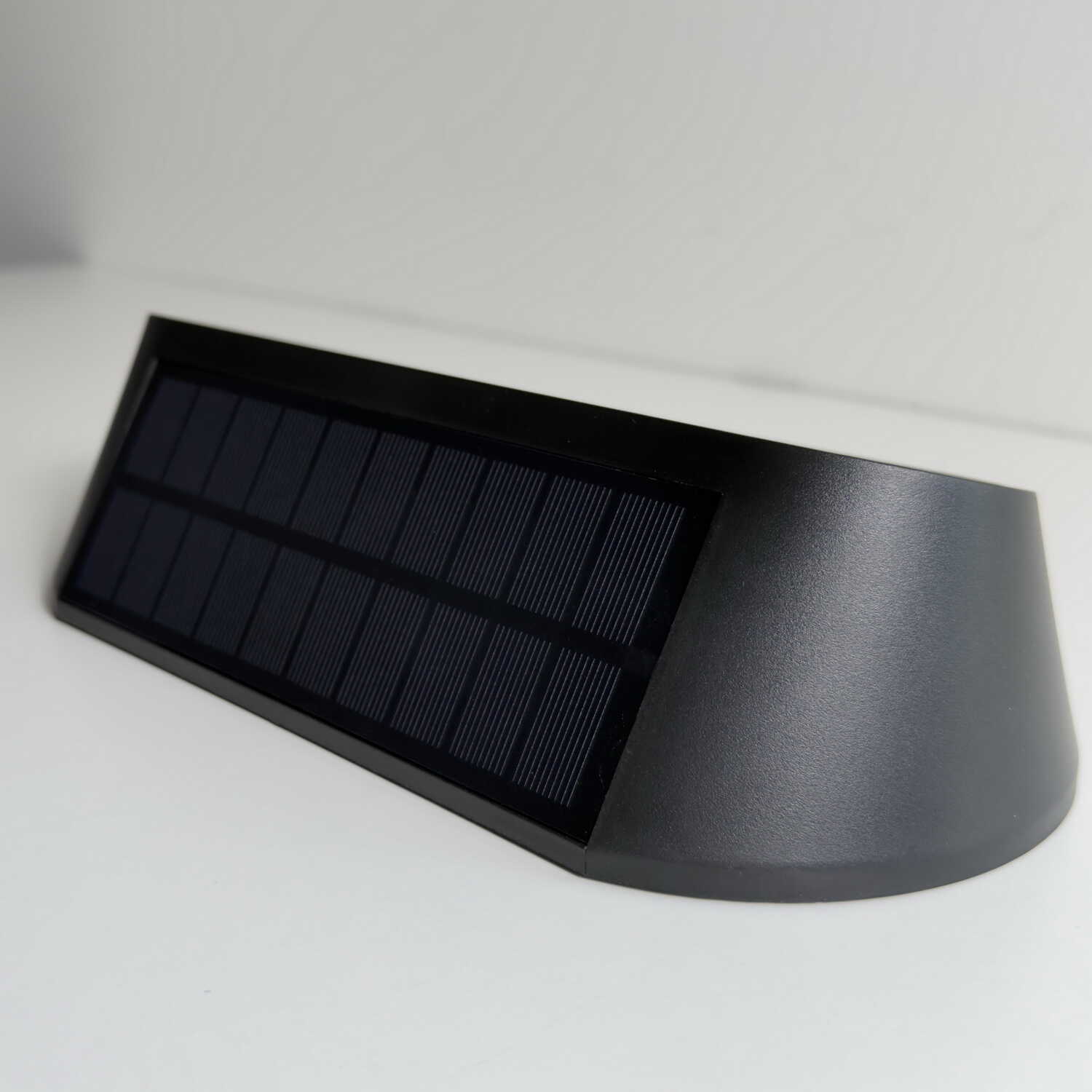

The product is designed for autonomous lighting of pedestrian areas, private yards and other public open spaces. The lamp is powered by a rechargeable battery and is not connected to the mains. The solar panel converts sunlight into electricity and charges the battery.
This lamp has a built-in infrared motion sensor that does not require additional settings. Lamp activation conditions:
- light level less than ≤ 25lux (lux)
- activation radius less than ≤ 8 m (25°C)
- sensor activation angle less than ≤ 120̊
The lamp remains on for 30 seconds after the sensor is triggered.
Functions and features:
The light turns on automatically in sensor mode at dusk, i.e. when the external light level is less than 15 lux. Press the button to select the desired mode, switching between them in a circle. Once the mode is selected, no further switching is required. The light remembers the selected mode and applies it every evening. There are four operating modes:
- 1) Operating mode (default): the light automatically turns on at 10% brightness when darkness falls. When motion is detected, it activates at 100% brightness for 30 seconds. If new motion is detected during these 30 seconds, the 100% brightness operating time will continue for another 30 seconds. If no new motion is detected during these 30 seconds, it will return to 10% brightness and standby mode.
- 2) Operating mode: no light in standby mode when darkness falls. When motion is detected, it activates at 100% brightness for 30 seconds; if new motion is detected during these 30 seconds, the 100% brightness operating time will continue for another 30 seconds; if no new motion is detected during these 30 seconds, the light will turn off completely.
- 3) Working mode: the motion sensor function is turned off, always operating at 10% brightness until the battery is discharged or until dawn.
- 4) Operating mode: The device is turned off.
